Tools for Edge Banding Machine Fine Trimming Cutter

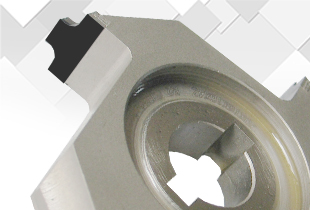

Brazed Fine trimming cutters
| Spec | TCT ID # | PCD ID # |
|---|---|---|
| 56X12X16X4Z (R=3) | 430001 | 9430001 |
| 58X12X16X4Z (R=3) | 430002 | 9430002 |
| 70X20X20X4Z (R=3) | 430003 | 9430003 |
| 73X16X16X3Z (R=2) | 430004 | 9430004 |
| 73X16X16X3Z (R=3) | 430005 | 9430005 |
| 73X16X16X3Z (R=5) | 430006 | 9430006 |
| 73X16X20X3Z (R=3) | 430007 | 9430007 |
| 77.7X13X20X4Z (R=3) | 430008 | 9430008 |
| 78X19X16X4Z (R=3) | 430009 | 9430009 |
| 82X16X20X4Z (R=3) | 430010 | 9430010 |

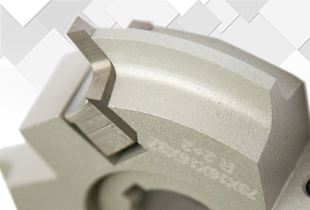

Inserted Knives Fine trimming cutters
| Spec | TCT ID # |
|---|---|
| 56X12X16X4Z (R=3) | 430011 |
| 58X12X16X4Z (R=3) | 430012 |
| 70X20X20X4Z (R=3) | 430013 |
| 73X16X16X3Z (R=2) | 430014 |
| 73X16X16X3Z (R=3) | 430015 |
| 73X16X16X3Z (R=5) | 430016 |
| 73X16X20X3Z (R=3) | 430017 |
| 77.7X13X20X4Z (R=3) | 430018 |
| 78X19X16X4Z (R=3) | 430019 |
| 82X16X20X4Z (R=3) | 430020 |

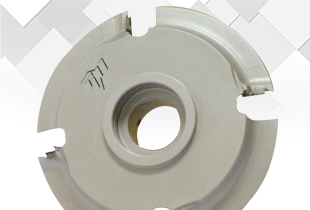

Profile trimming cutters
| Spec | TCT ID # | |
|---|---|---|
| 75X62XHSK32X4Z (R=1) | 440001 | 9440001 |
| 75X62XHSK32X4Z (R=1.5) | 440002 | 9440002 |
| 75X62XHSK32X4Z (R=2) | 440003 | 9440003 |
| 75X62XHSK32X6Z (R=2) | 440004 | 9440004 |
| 75X62XHSK32X4Z (R=2.5) | 440005 | 9440005 |
| 75X62XHSK32X6Z (R=2.5) | 440006 | 9440006 |
| 75X62XHSK32X4Z (R=3) | 440007 | 9440007 |
| 75X62XHSK32X6Z (R=3) | 440008 | 9440008 |
| 75X62XHSK32X4Z (R=3.5) | 440009 | 9440009 |
| 75X62XHSK32X4Z (R=4) | 440010 | 9440010 |
| 75X62XHSK32X6Z (R=4) | 440011 | 9440011 |
| 75X62XHSK32X4Z (R=4.5) | 440012 | 9440012 |
| 75X62XHSK32X4Z (R=5) | 440013 | 9440013 |
| 75X62XHSK32X6Z (R=5.5) | 440014 | 9440014 |
| 84X70XHSK25RX4Z (R=1) | 440015 | 9440015 |
| 84X70XHSK25RX4Z (R=1.5) | 440016 | 9440016 |
| 84X70XHSK25RX6Z (R=1.5) | 440017 | 9440017 |
| 84X70XHSK25RX4Z (R=2) | 440018 | 9440018 |
| 84X70XHSK25RX6Z (R=2) | 440019 | 9440019 |
| 84X70XHSK25RX4Z (R=2.5) | 440020 | 9440020 |
| 84X70XHSK25RX6Z (R=2.5) | 440021 | 9440021 |
| 84X70XHSK25RX4Z (R=3) | 440022 | 9440022 |
| 84X70XHSK25RX6Z (R=3) | 440023 | 9440023 |
| 84X70XHSK25RX4Z (R=4) | 440024 | 9440024 |
| 84X70XHSK25RX6Z (R=4) | 440025 | 9440025 |
| 84X70XHSK25RX4Z (R=5) | 440026 | 9440026 |
| 84X70XHSK25RX6Z (R=5) | 440027 | 9440027 |
| 84X70XHSK25RX4Z (R=6) | 440028 | 9440028 |
| 91X70XHSK25RX4Z (R=7) | 440029 | 9440029 |
| 91X70XHSK25RX4Z (R=8) | 440030 | 9440030 |
| 91X70XHSK25RX4Z (R=9) | 440031 | 9440031 |
Brazed Fine trimming cutters
| TCT ID # | D | H | d | Z | R | PCD ID # |
|---|---|---|---|---|---|---|
| 430001 | 56 | 12 | 16 | 4 | 3 | 9430001 |
| 430002 | 58 | 12 | 16 | 4 | 3 | 9430002 |
| 430003 | 70 | 20 | 20 | 4 | 3 | 9430003 |
| 430004 | 73 | 16 | 16 | 3 | 2 | 9430004 |
| 430005 | 73 | 16 | 16 | 3 | 3 | 9430005 |
| 430006 | 73 | 16 | 16 | 3 | 5 | 9430006 |
| 430007 | 73 | 16 | 20 | 3 | 3 | 9430007 |
| 430008 | 77.7 | 13 | 20 | 4 | 3 | 9430008 |
| 430009 | 78 | 19 | 16 | 4 | 3 | 9430009 |
| 430010 | 82 | 16 | 20 | 4 | 3 | 9430010 |
Inserted Knives Fine trimming cutters
| TCT ID # | D | H | d | Z | R |
|---|---|---|---|---|---|
| 430011 | 56 | 12 | 16 | 4 | 3 |
| 430012 | 58 | 12 | 16 | 4 | 3 |
| 430013 | 70 | 20 | 20 | 4 | 3 |
| 430014 | 73 | 16 | 16 | 3 | 2 |
| 430015 | 73 | 16 | 16 | 3 | 3 |
| 430016 | 73 | 16 | 16 | 3 | 5 |
| 430017 | 73 | 16 | 20 | 3 | 3 |
| 430018 | 77.7 | 13 | 20 | 4 | 3 |
| 430019 | 78 | 19 | 16 | 4 | 3 |
| 430020 | 82 | 16 | 20 | 4 | 3 |
Profile trimming cutters
| TCT ID # | D1 | D2 | d | Z | R | PCD ID # |
|---|---|---|---|---|---|---|
| 440001 | 75 | 62 | HSK32 | 4 | 1 | 9440001 |
| 440002 | 75 | 62 | HSK32 | 4 | 1.5 | 9440002 |
| 440003 | 75 | 62 | HSK32 | 4 | 2 | 9440003 |
| 440004 | 75 | 62 | HSK32 | 6 | 2 | 9440004 |
| 440005 | 75 | 62 | HSK32 | 4 | 2.5 | 9440005 |
| 440006 | 75 | 62 | HSK32 | 6 | 2.5 | 9440006 |
| 440007 | 75 | 62 | HSK32 | 4 | 3 | 9440007 |
| 440008 | 75 | 62 | HSK32 | 6 | 3 | 9440008 |
| 440009 | 75 | 62 | HSK32 | 4 | 3.5 | 9440009 |
| 440010 | 75 | 62 | HSK32 | 4 | 4 | 9440010 |
| 440011 | 75 | 62 | HSK32 | 6 | 4 | 9440011 |
| 440012 | 75 | 62 | HSK32 | 4 | 4.5 | 9440012 |
| 440013 | 75 | 62 | HSK32 | 4 | 5 | 9440013 |
| 440014 | 75 | 62 | HSK32 | 6 | 5.5 | 9440014 |
| 440015 | 84 | 70 | HSK25R | 4 | 1 | 9440015 |
| 440016 | 84 | 70 | HSK25R | 4 | 1.5 | 9440016 |
| 440017 | 84 | 70 | HSK25R | 6 | 1.5 | 9440017 |
| 440018 | 84 | 70 | HSK25R | 4 | 2 | 9440018 |
| 440019 | 84 | 70 | HSK25R | 6 | 2 | 9440019 |
| 440020 | 84 | 70 | HSK25R | 4 | 2.5 | 9440020 |
| 440021 | 84 | 70 | HSK25R | 6 | 2.5 | 9440021 |
| 440022 | 84 | 70 | HSK25R | 4 | 3 | 9440022 |
| 440023 | 84 | 70 | HSK25R | 6 | 3 | 9440023 |
| 440024 | 84 | 70 | HSK25R | 4 | 4 | 9440024 |
| 440025 | 84 | 70 | HSK25R | 6 | 4 | 9440025 |
| 440026 | 84 | 70 | HSK25R | 4 | 5 | 9440026 |
| 440027 | 84 | 70 | HSK25R | 6 | 5 | 9440027 |
| 440028 | 84 | 70 | HSK25R | 4 | 6 | 9440028 |
| 440029 | 91 | 70 | HSK25R | 4 | 7 | 9440029 |
| 440030 | 91 | 70 | HSK25R | 4 | 8 | 9440030 |
| 440031 | 91 | 70 | HSK25R | 4 | 9 | 9440031 |
