Printed Circuit Board Round Corner Trimming

Round Corner Trimming

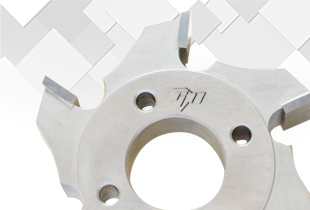

PCB Radius Trimming cutters
SpecTCT ID #PCD ID #
93X15X30X6Z (R=6.5) α=115°5100139510013
100X15X30X6Z (R=6) α=100°5100149510014
SpecPCD ID #
150X14X19X2Z α=20°9510018
150X14X19X4Z α=20°9510019
150X14X30X2Z α=20°9510020
150X14X30X4Z α=20°9510021

Round Corner Trimming

PCB Radius Trimming cutters
TCT ID #DHdZRαPCD ID #
51001393153066.5115°9510013
510014100153066100°9510014
DHdZαPCD ID #
1501419220°9510018
1501419420°9510019
1501430220°9510020
1501430420°9510021
